Allied Vision Cameras

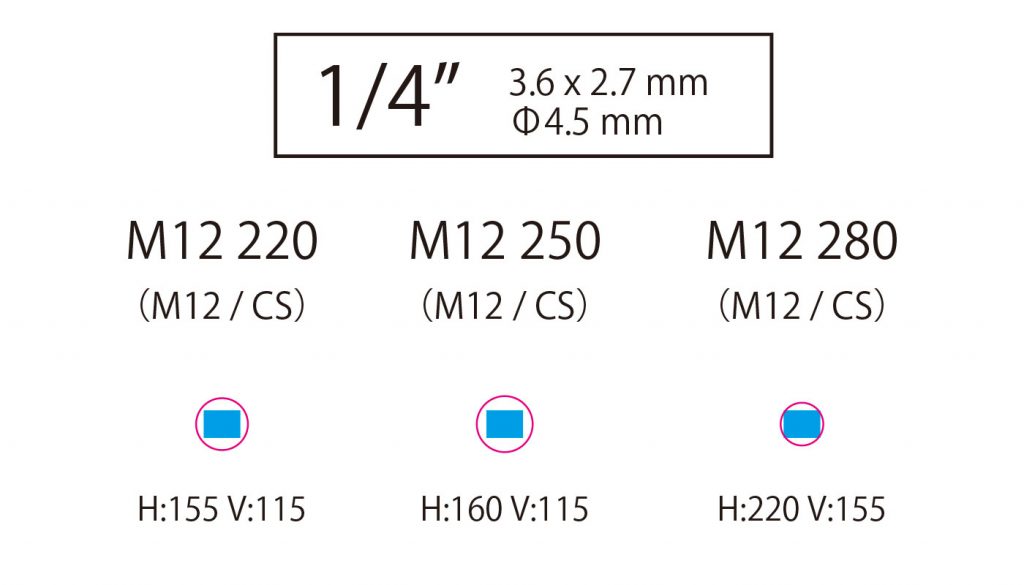

1/4″

Model	Sensor	Resolution	Mount
Manta G-031	1/4″	656×492	C/CS

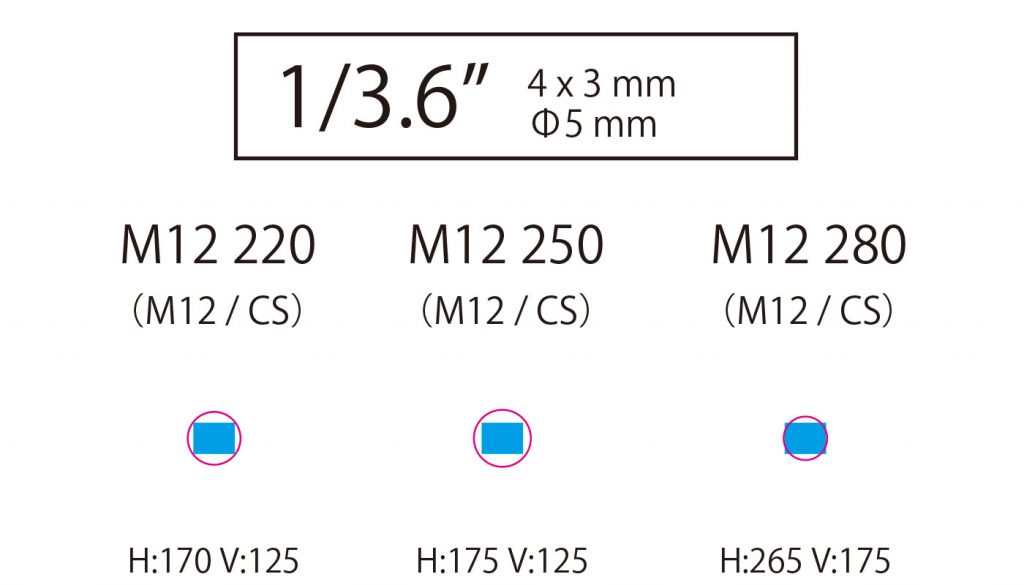

1/3.6″

Model	Sensor	Resolution	Mount
Alvium 1500 C-050	1/3.6″	808×608	C/CS/S
Alvium 1500 C-210	1/3.6″	1928×1088	C/CS/S
Alvium 1800 U-050	1/3.6″	808×608	C/CS/S

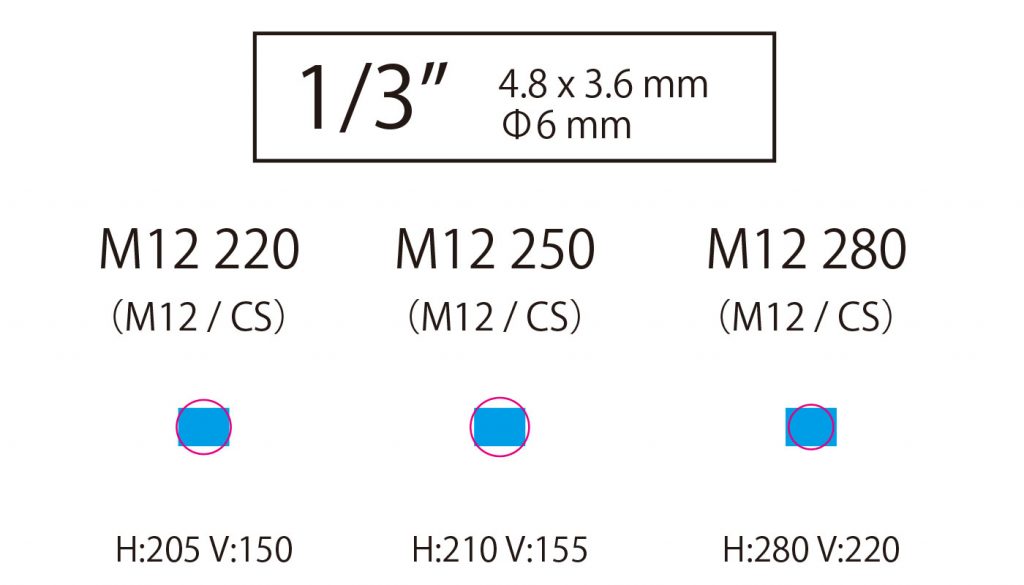

1/3″

Model	Sensor	Resolution	Mount
Alvium 1500 C-120	1/3″	1280×960	C/CS/S
Alvium 1800 U-120	1/3″	1280×960	C/CS/S
Mako G-032	1/3″	658×492	C/CS
Mako G-125	1/3″	1292×964	C/CS
Manta G-125	1/3″	1292×964	C/CS

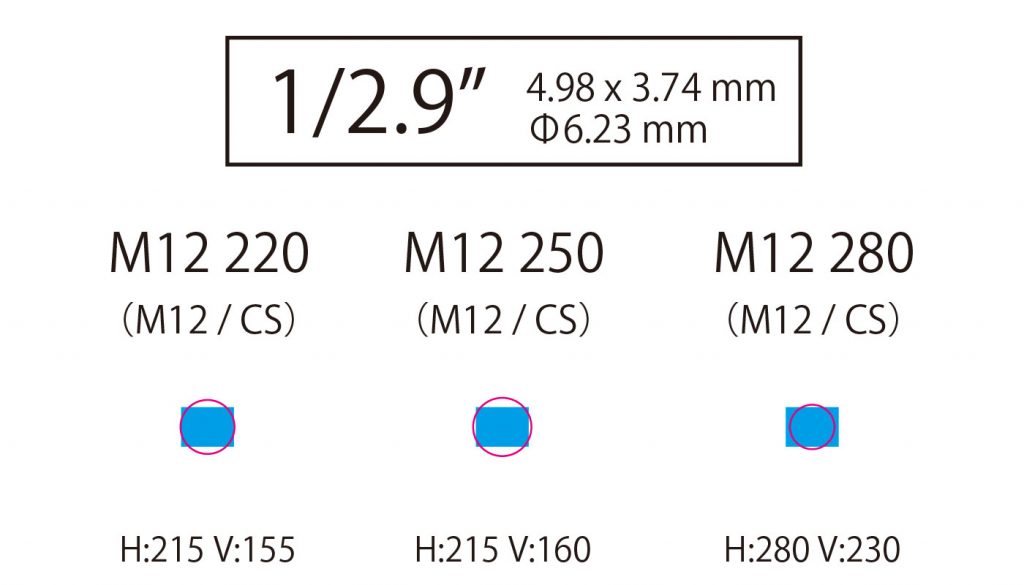

1/2.9″

Model	Sensor	Resolution	Mount
Alvium 1800 C-040	1/2.9″	728×544	C/CS/S
Alvium 1800 U-040	1/2.9″	728×544	C/CS/S
Alvium 1800 U-158	1/2.9″	658×492	C/CS/S
Mako G-040	1/2.9″	728×544	C/CS
Manta G-040	1/2.9″	728×544	C/CS

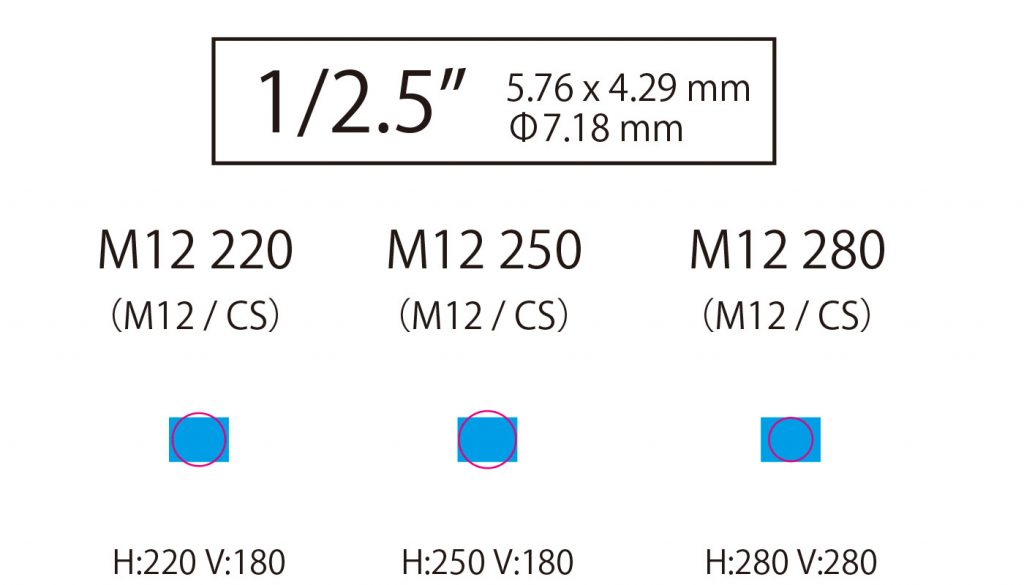

1/2.5″

Model	Sensor	Resolution	Mount
Alvium 1500 C-500	1/2.5″	2592×1944	C/CS/S
Alvium 1500 C-501 NIR	1/2.5″	2592×1944	C/CS/S
Alvium 1800 C-500	1/2.5″	1928×1088	C/CS/S
Alvium 1800 U-500	1/2.5″	2592×1944	C/CS/S
Alvium 1800 U-501 NIR	1/2.5″	2592×1944	C/CS1/2.5″

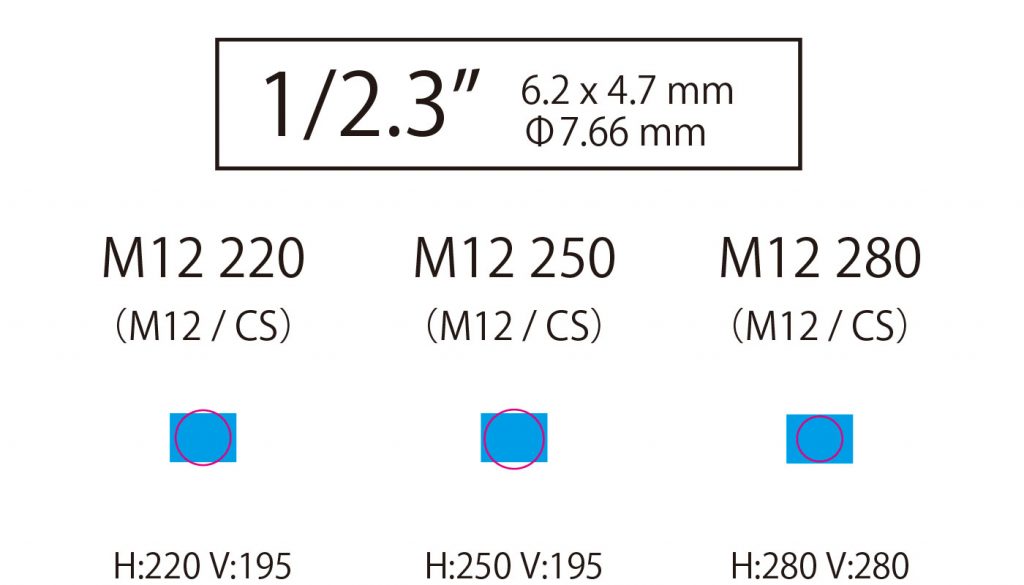

1/2.3″

Model	Sensor	Resolution	Mount
Alvium 1800 C-240	1/2.3″	1936×1216	C/CS/S
Alvium 1800 U-240	1/2.3″	1936×1216	C/CS/S

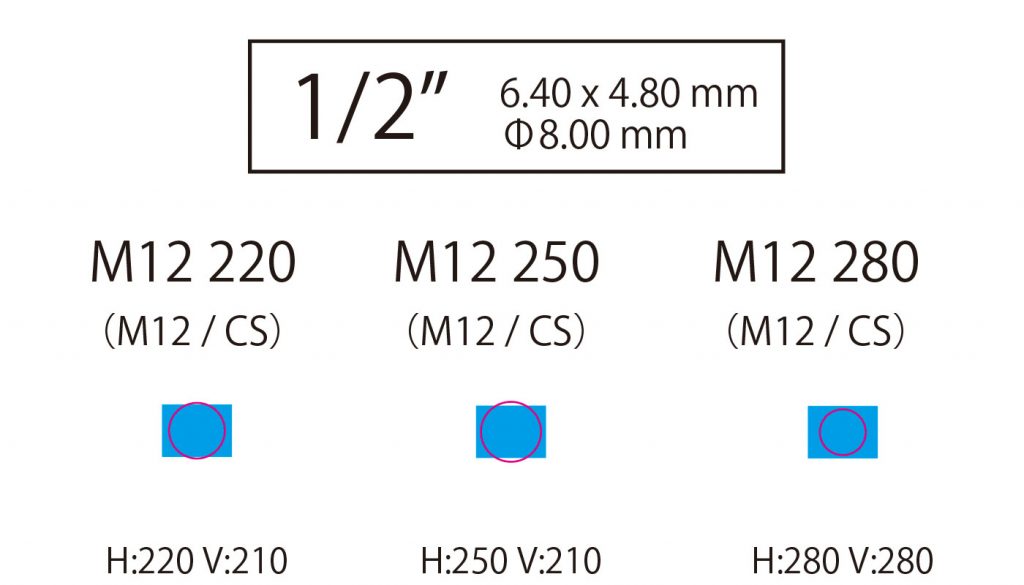

1/2″

Model	Sensor	Resolution	Mount
Manta G-033	1/2″	656×492	C/CS
Manta G-046	1/2″	780×580	C/CS
Manta G-146	1/2″	1388×1038	C/CS

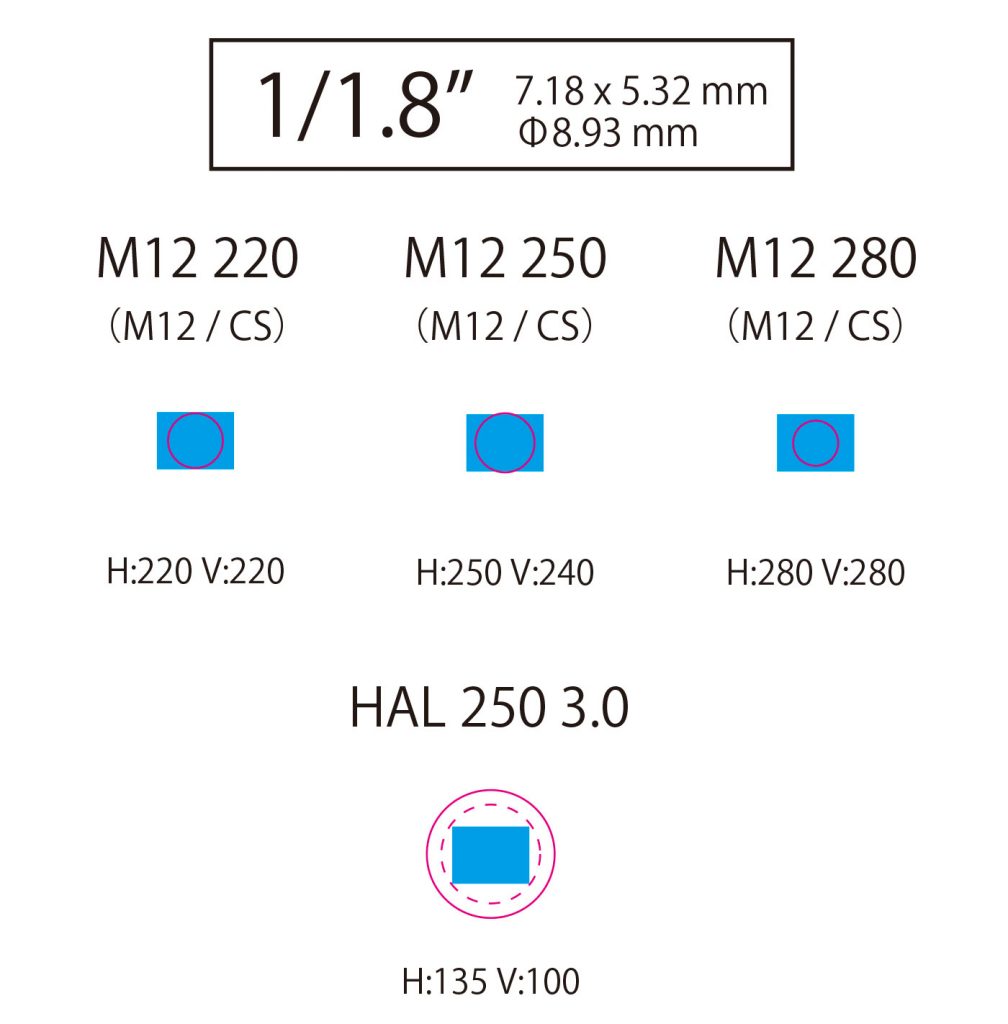

1/1.8″

Model	Sensor	Resolution	Mount
Alvium 1800 C-319	1/1.8″	2064×1544	C/CS/S
Alvium 1800 C-511	1/1.8″	2464×2064	C/CS/S
Alvium 1800 U-319	1/1.8″	2064×1544	C/CS/S
Mako G-131	1/1.8″	1280×1024	C/CS
Mako G-192	1/1.8″	600×1200	C/CS
Mako G-319	1/1.8″	2064×1544	C/CS

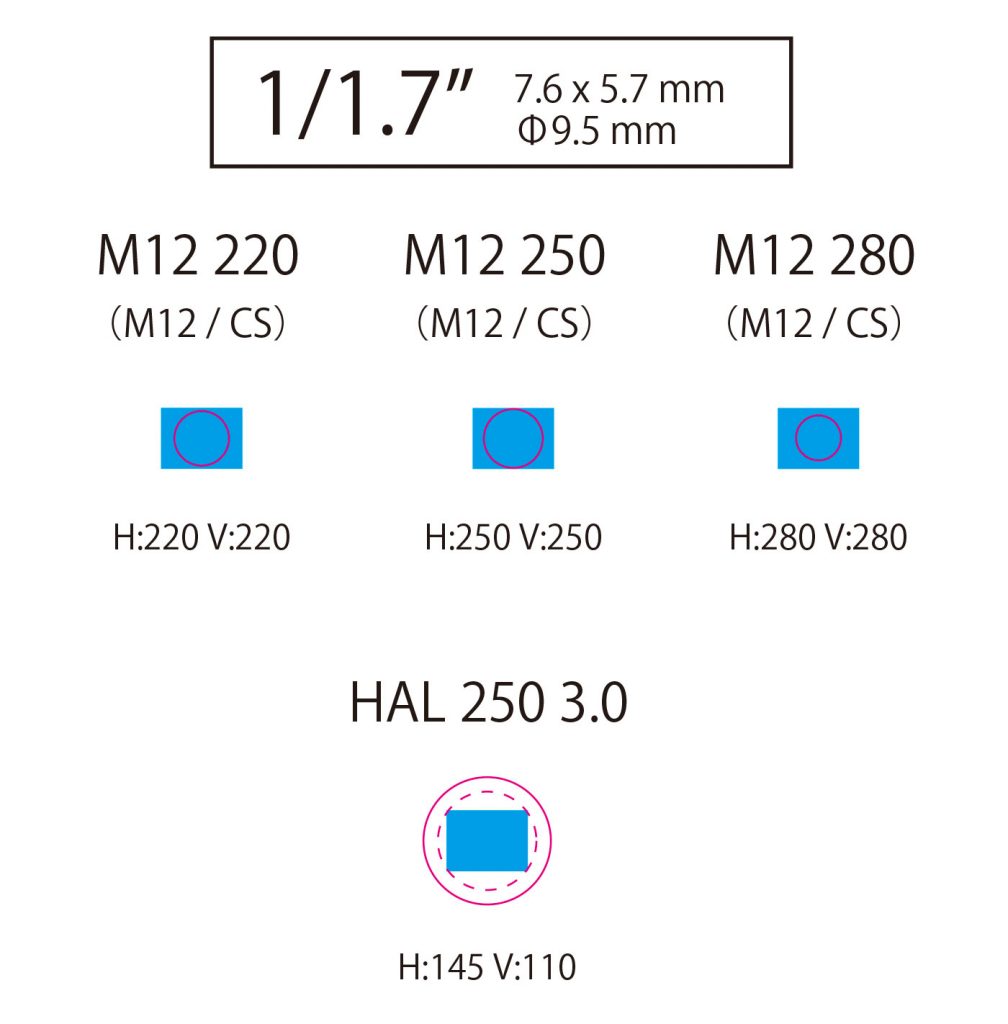

1/1.7″

Model	Sensor	Resolution	Mount
Alvium 1800 C-052	1/1.7″	816×624	C/CS/S
Alvium 1800 U-052	1/1.7″	816×624	C/CS/S

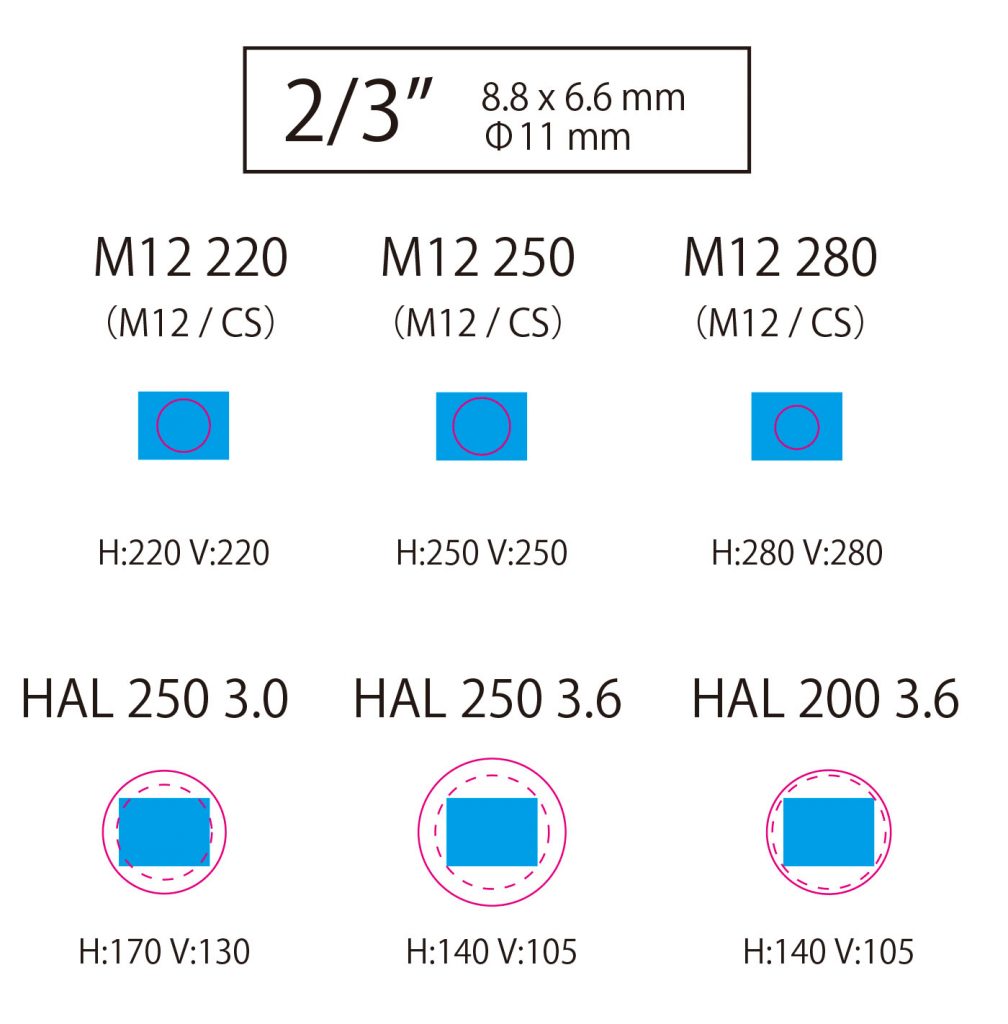

2/3″

Model	Sensor	Resolution	Mount
Alvium 1800 C-291	2/3″	1944×1472	C/CS/S
Alvium 1800 C-507	2/3″	2464×2056	C/CS/S
Alvium 1800 C-508	2/3″	2464×2056	C/CS/S
Alvium 1800 U-291	2/3″	1944×1472	C/CS/S
Mako G-223	2/3″	2048×1088	C/CS
Manta G-145	2/3″	1388×1038	C/CS
Manta G-145-30fps	2/3″	1388×1038	C/CS
Manta G-145B NIR	2/3″	1388×1038	C/CS

1/1.2 “

Model	Sensor	Resolution	Mount
Mako G-234	1/1.2″	1936×1216	C/CS

To install the M12 lens, the IR Cut filter inside the camera must be removed.

To install the M12 lens, the IR Cut filter inside the camera must be removed.
